HYDRAULIC PALLET TRUCK

CAPACITY : 2500 Kg.

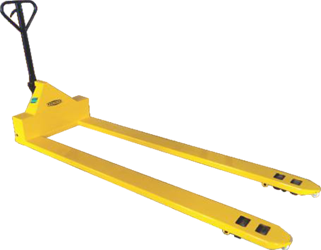

Hydraulic Pallet Truck
Hydraulic Pallet Truck Diagram



  • Robust in construction with additional ribs on welded joints for better strength.
  • Excellent manoeuverability, Bigger diameter steering wheels,
    Dia. 180 x 50 mm
  • Reliable hydraulic System, Single cartridge valve, CO2 welded pump
  • Specially designed rear end of forks at roller slots to prevent weak section at end by providing separate slots for roller with middle portion un cut.
  • Additional climber wheels are provided as a standard feature for easy entry of truck under wooden pallets.



MODEL PT - 25 PT - 25 W
Capacity (Kg) 2500 2500
Fork Length (mm) 1220 1220
Width Over Forks (mm) 550 685
Minimum Fork Height (mm) 85 85
Maximum Fork Height (mm) 195 195
Steering Wheel (Dia x Width mm)-2 Nos. 180 x 50 180 x 50
Rear Roller Wheel (Dia x Width mm) Tandem Arrangement - 4 Nos. 82 x 70 82 x 70
Body & Fork Thickness (mm) 3 mm 3 mm
Truck Self Weight (@Kg) 70 80




HYDRAULIC PALLET TRUCK

SPECIAL PURPOSE



Hydraulic Pallet Truck
Fork Length = 1500 mm
Width = 800 mm
Hydraulic Pallet Truck
Fork Length = 2400 mm
Width = 685 mm



Hydraulic Pallet Truck
Fork Length = 2400 mm
Width = 1000 mm
Hydraulic Pallet Truck
Fork Length = 1600 mm
Width = 1000 mm



  • All wheels are provided with sealed ball bearings for smooth & effortless movement of pallet truck under heavy loads. (Total 12 ball bearings)
  • Pivoted joints are provided with phosphor bronze bushes to avoid wear & tear of pins to give trouble free long life with stability
  • Asthetic hand release lever with Neutral, Raised & Release positions disengauges the hydraulic pump unit for effortless pulling of pallet truck under load.
  • Maintenance free pump unit, strong body, low cost spares with easy availability & prompt service improves overall performance.



Card image cap
TANDEM ROLLERS WITH CLIMBER WHEELS
Card image cap
EXCELLENT MANOEUVERABILITY DIA 200 MM STEERING WHEELS
Card image cap
ERGONOMIC HANDLE WITH THREE POSITION LEVER
Card image cap
SPECIALLY DESIGNED FORKS TO AVOID WEAKER SECTION AT END



Card image cap
ALL PIVOTED JOINTS ARE WITH PHOSPHOR BRONZE BUSHING
Card image cap
RELIABLE HYDRAULIC SYSTEM SINGLE CARTRIDGE VALVE
Card image cap
POLYMER WHEELS WITH SEALED BALL BEARINGS
Card image cap
PU WHEELS WITH SEALED BALL BEARINGS
